Mastering Merge Sort in JavaScript: A Step-by-Step Guide with Code Snippets and Visuals

Merge Sort is a powerful sorting algorithm that uses the divide-and-conquer approach to efficiently sort an array of numbers or other comparable elements. In this post, we'll explore how to implement the Merge Sort algorithm using JavaScript, complete with code snippets and visual aids to help you grasp the concept.

Understanding Merge Sort

Merge Sort works by dividing the unsorted list into n sublists, each containing one element (a list of one element is considered sorted). It then repeatedly merges these sublists to produce new sorted sublists until there is only one sublist remaining—this will be the sorted list. The key operations are:

1. Divide: Split the array into two halves.
2. Conquer: Recursively sort each half.
3. Combine: Merge the two halves back together.

Implementing Merge Sort in JavaScript

Let's break down the implementation step-by-step.

Step 1: The mergeSort Function

The main function that initiates the sorting process is called mergeSort. It checks if the array has more than one element to sort. If not, it returns the array as is since a single-element array is already sorted.

function mergeSort(arr) {
    if (arr.length <= 1) {
        return arr;
    }

    const mid = Math.floor(arr.length / 2);
    const left = arr.slice(0, mid);
    const right = arr.slice(mid);

    return merge(mergeSort(left), mergeSort(right));
}

Step 2: The merge Function

The merge function is responsible for combining two sorted arrays into a single sorted array. It compares the elements of both arrays and builds a new array from the smallest elements.

function merge(left, right) {
    let result = [];
    let leftIndex = 0;
    let rightIndex = 0;

    while (leftIndex < left.length && rightIndex < right.length) {
        if (left[leftIndex] < right[rightIndex]) {
            result.push(left[leftIndex]);
            leftIndex++;
        } else {
            result.push(right[rightIndex]);
            rightIndex++;
        }
    }

    return result.concat(left.slice(leftIndex)).concat(right.slice(rightIndex));
}

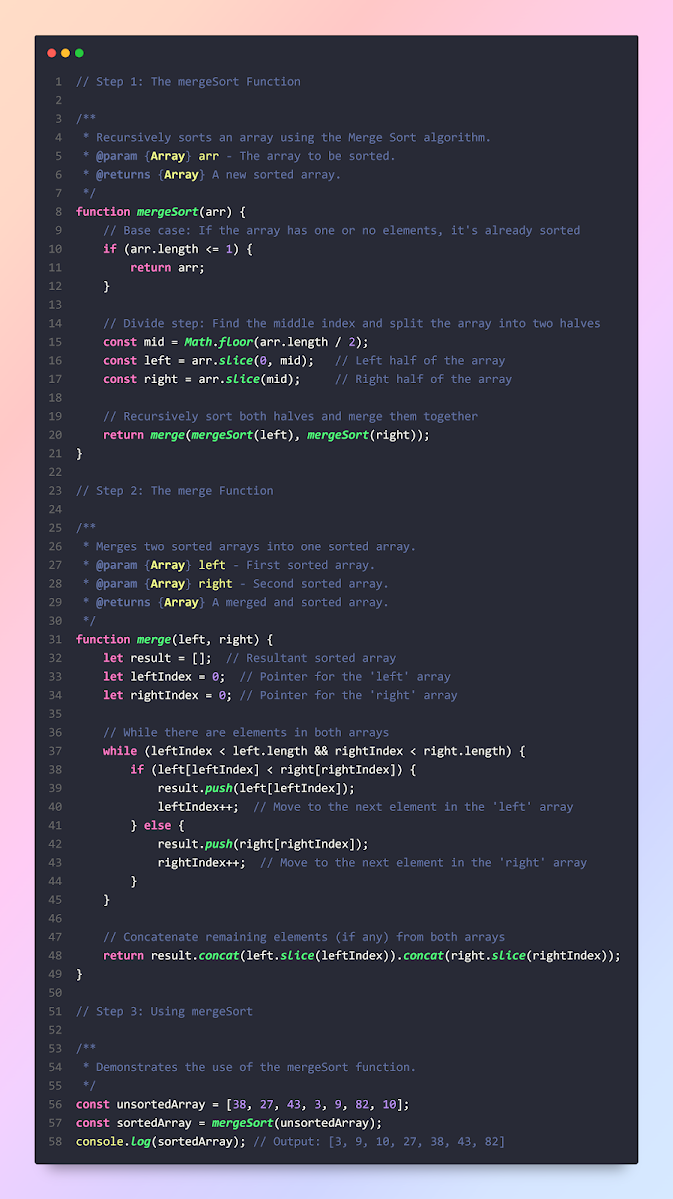

Step 3: Putting It All Together

Now, let's see the complete code in action. Here’s how you can use mergeSort to sort an array:

const unsortedArray = [38, 27, 43, 3, 9, 82, 10];
const sortedArray = mergeSort(unsortedArray);
console.log(sortedArray); // Output: [3, 9, 10, 27, 38, 43, 82]

Visualizing Merge Sort

Understanding how elements are divided and merged can be easier with a visual representation. Imagine the array [38, 27, 43, 3, 9, 82, 10]:

1. Divide:

   • Split into [38, 27, 43, 3] and [9, 82, 10]
   • Further split until each sublist has one element.

2. Merge:

   • Merge sorted sublists: [27, 38], [3, 43], [9, 82], [10]
   • Continue merging: [3, 27, 38, 43] and [9, 10, 82]
   • Final merge results in: [3, 9, 10, 27, 38, 43, 82]

Conclusion

Merge Sort is an efficient algorithm for sorting large datasets due to its predictable O(n log n) time complexity. By implementing it in JavaScript, you can better understand both the theory and practice behind this powerful sorting technique.

Feel free to experiment with different arrays and visualize the process using tools like online visualizers or your own custom scripts. Happy coding!
